三位式气动阀门执行机构
‹
›
西美尔三位式气动阀门执行机构 — 扭矩3-15000Nm可定制

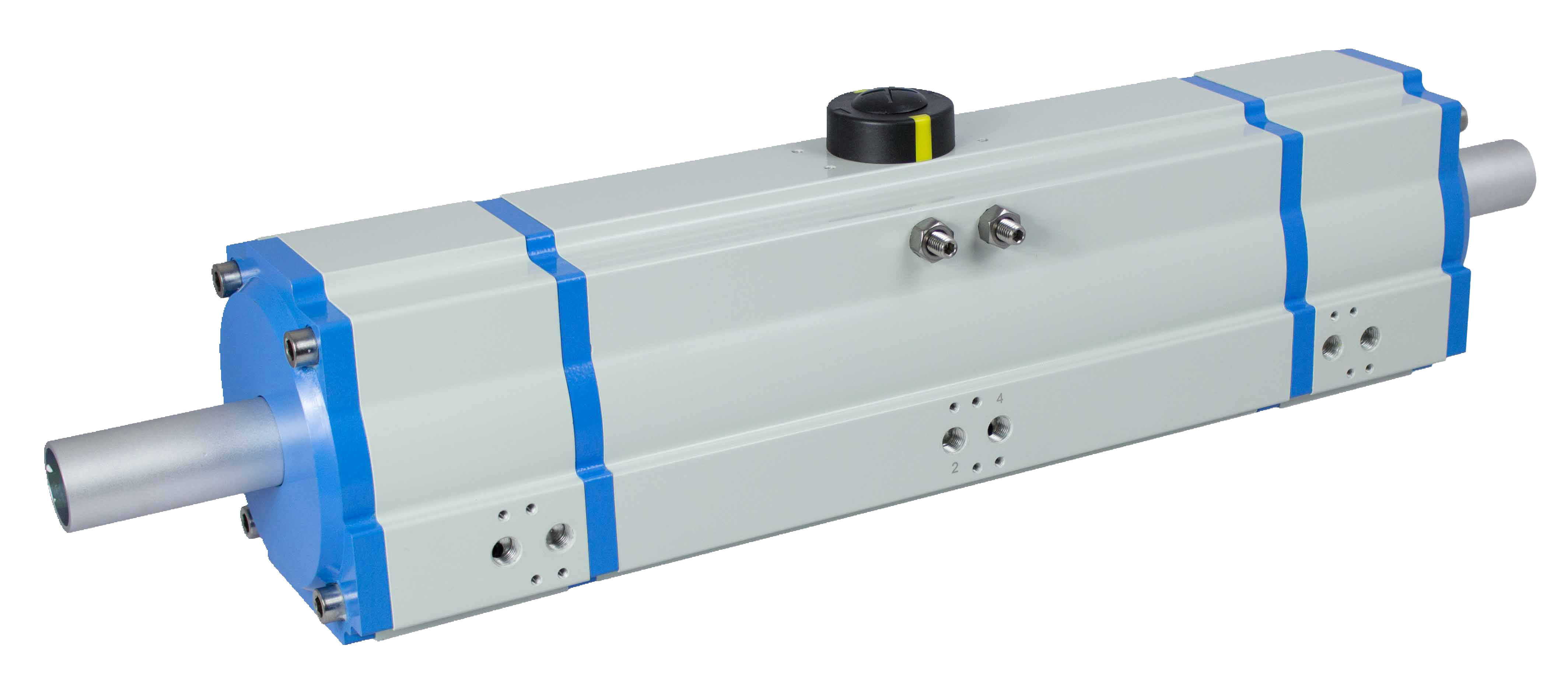

三位式阀门气动执行器
扭矩：3-15000Nm
动作：DA / SR
行程：0 - 90 -180 ， 0 - 45 - 90 ， 0 - 180 - 360 ，定制
标准：西美尔 / 国际
Specifications
三位式气动阀门执行机构
执行器输出扭矩
双作用执行器（DA） 106 to115,272 in-lb (12 to 13,024 Nm)
单作用执行器（SR） 97 to 58,273 in-lb (11 to 6,584 Nm)
材质
铝合金
不锈钢
防护等级
IP67 IP68
驱动方式
气动，气动+手动
温度范围
-13°F to 176°F (-25°C to 80°C)
-40°F to 176°F (-40°C to 80°C)
-13°F to 300°F (-25°C to 150°C)
控制附件选项
手轮机构
电磁阀 减压阀
限位开关
Maximum Allowable Operating Pressure
Up to 120 psig (8 Bar)
控制选项
开-关, 调节, 双作用, 单作用
安装
VDI/VDE 3845 Compliant (NAMUR) or ISO 5211 DIN337
气源介质
Dry Compressed Air, Inert Gas
气源尺寸
1/4”NPT or 1/2”NPT or 3/8”NPT or 1/4”G or 1/2”G or 3/8”G
行程角度
三位（段）式
阀门应用
三位（段）式气动蝶阀, 三位（段）式气动球阀
Features & Benefits
气动执行机构
Actuator Body
According to the different requirements, the extruded aluminum alloy ASTM6005 Body can be treated with hard anodized, powder polyester painted (different colours is available such as blue, orange, yellow etc.), PTFE or Nickel plated.
End caps
Die-casting aluminum powder polyester painted in different colours, PTFE or Nickel plated.
Pistons
The twin rack pistons are made from Die-casting aluminum treated with Hard anodized or made from Cast steel with galvanization. Symmetric mounting position, long cycle life and fast operation, reversing rotation by simply inverting the pistons.
Travel adjustment
The two independent external travel stop adjuatment bolts can adjust +5° at both open and close directions easily and precisely.
High performance springs
Preloaded coating springs are made from the high quality material for resistant to corrosion and longer service life, which can be demounted safely and conveniently to satisfy different requirements of torque by changing quantity of springs.
Model Namber
双作用三位式气动执行器
RT020DA-3P
RT035DA-3P
RT050DA-3P
RT075DA-3P
RT110DA-3P
RT160DA-3P
RT255DA-3P
RT435DA-3P
RT665DA-3P
RT1000DA-3P
RT1200DA-3P
RT1800DA-3P
RT2700DA-3P
RT3800DA-3P
RT5700DA-3P
RT8000DA-3P
单作用三段式气动执行器
FC执行器
RT020SR K10 FC-3P
RT035SR K10 FC-3P
RT050SR K10 FC-3P
RT075SR K10 FC-3P
RT110SR K10 FC-3P
RT160SR K10 FC-3P
RT255SR K10 FC-3P
RT435SR K10 FC-3P
RT665SR K10 FC-3P
RT1000SR K10 FC-3P
RT1200SR K10 FC-3P
RT1800SR K10 FC-3P
RT2700SR K10 FC-3P
RT3800SR K10 FC-3P
RT5700SR K10 FC-3P
RT8000SR K10 FC-3P
单作用三段式气动执行器
FO执行器
RT020SR K10 FO-3P
RT035SR K10 FO-3P
RT050SR K10 FO-3P
RT075SR K10 FO-3P
RT110SR K10 FO-3P
RT160SR K10 FO-3P
RT255SR K10 FO-3P
RT435SR K10 FO-3P
RT665SR K10 FO-3P
RT1000SR K10 FO-3P
RT1200SR K10 FO-3P
RT1800SR K10 FO-3P
RT2700SR K10 FO-3P
RT3800SR K10 FO-3P
RT5700SR K10 FO-3P
RT8000SR K10 FO-3P
