齿条和齿轮气动执行器
‹
›

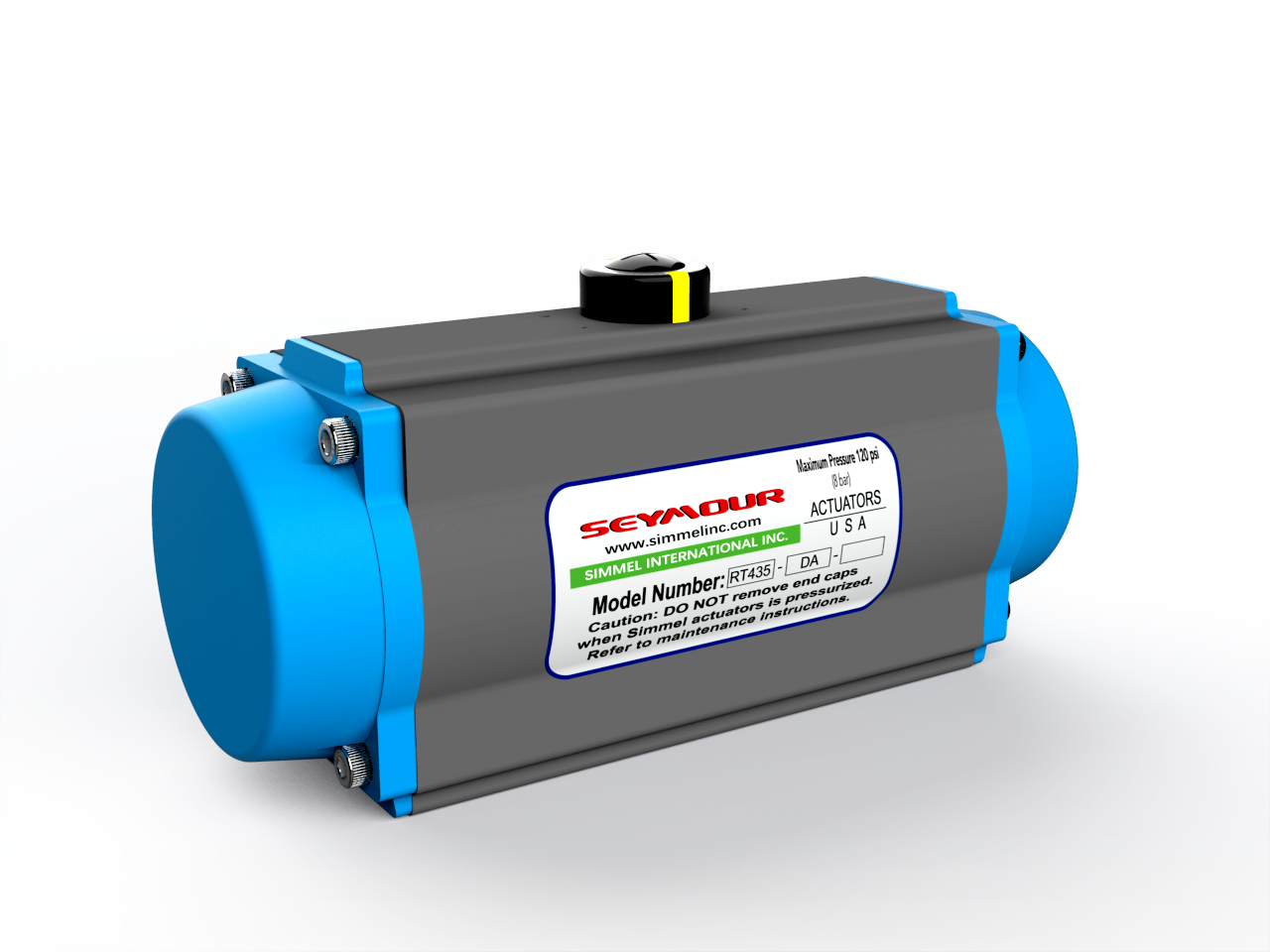

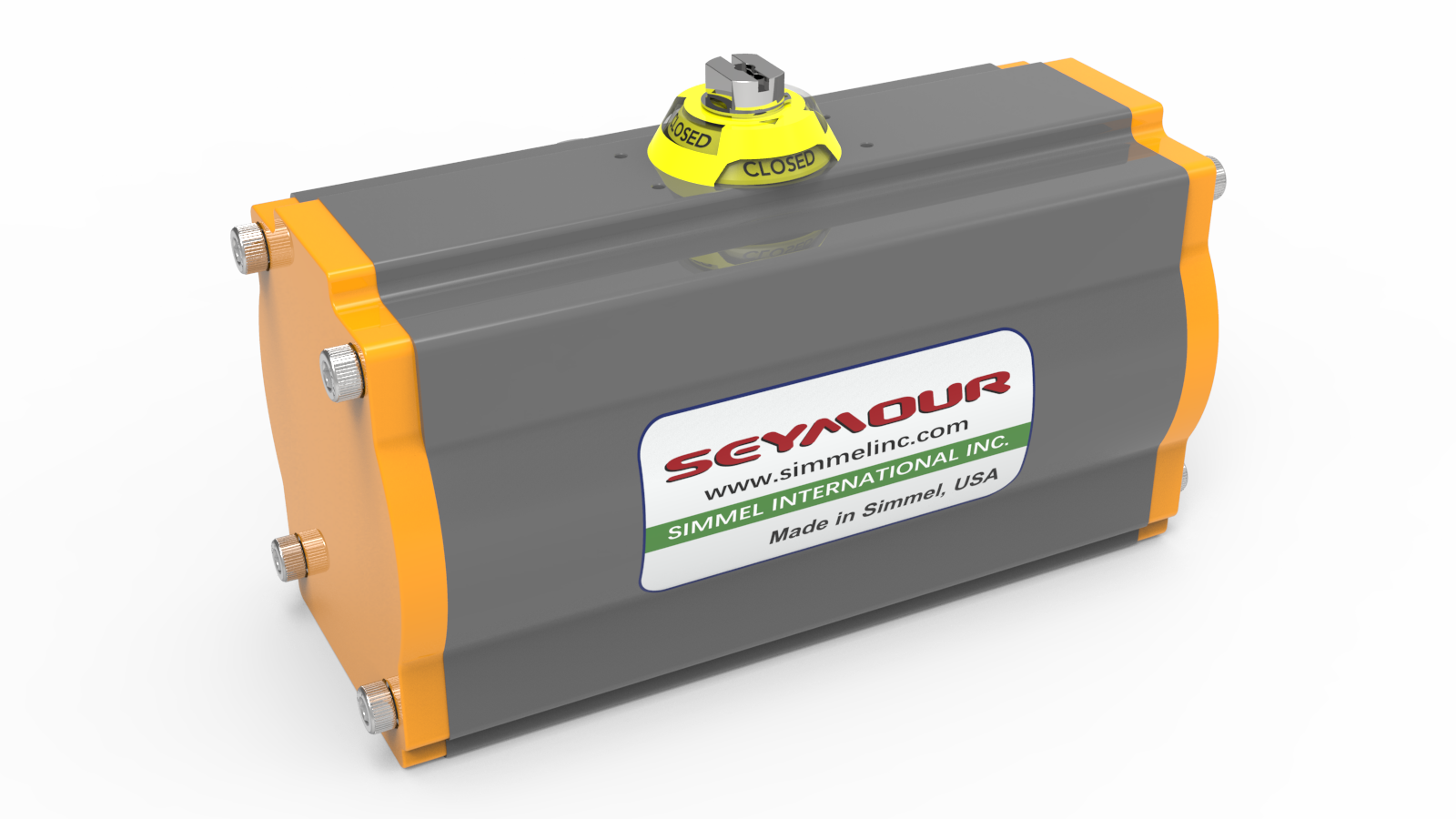

RT系列齿条齿轮气动执行器 - 美标铝合金材质
RT系列气动执行器
材质：美标铝合金；
工艺：硬质氧化处理，选项喷塑，海洋防腐漆；
扭矩：3 - 8000牛米
气压：2 - 8巴
行程：90度、135度、140度、180度、360度，定制
安装：国际标准、西美尔标准、定制
适用：球阀，蝶阀，旋塞阀
Specifications

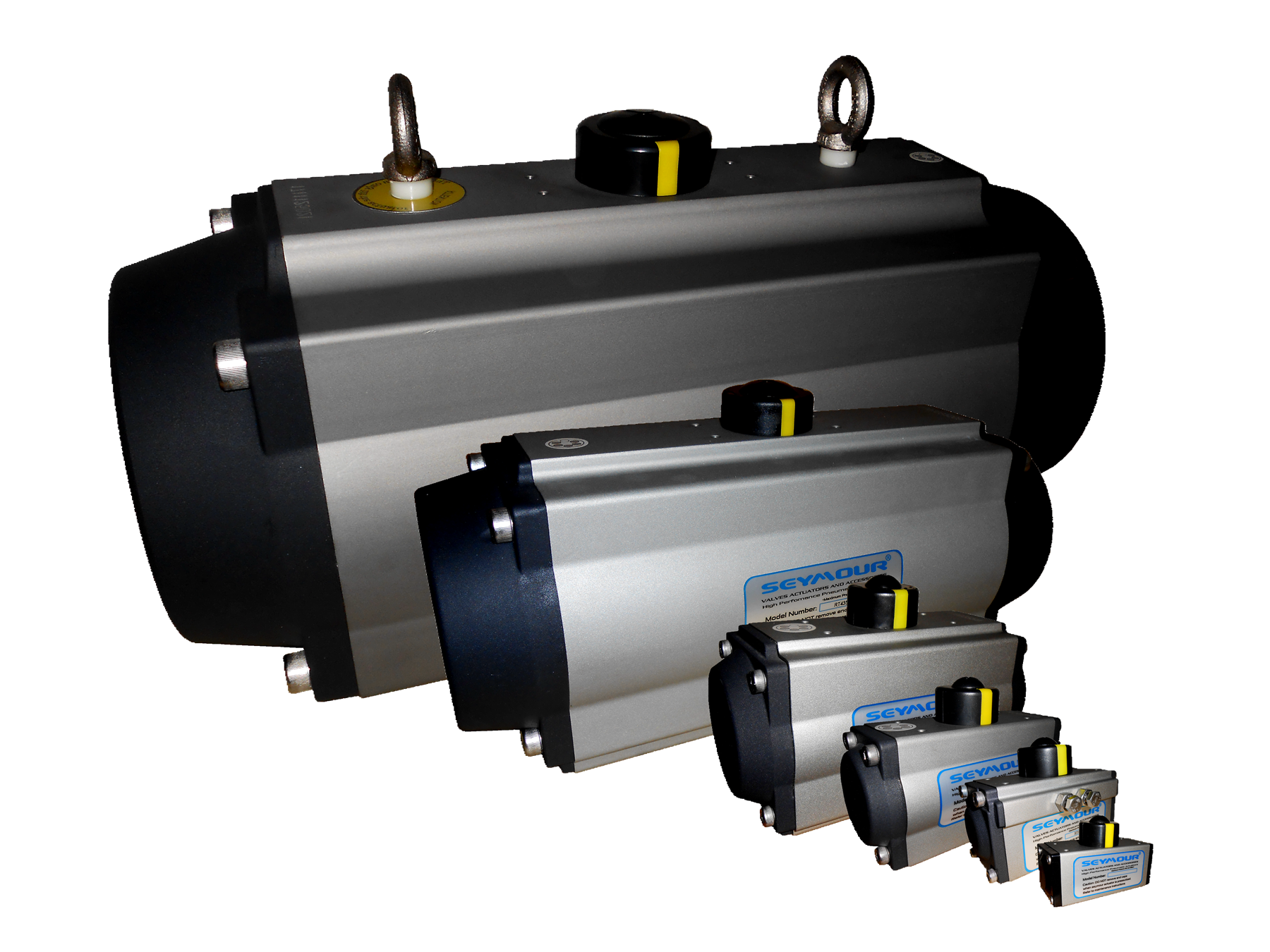

Simmel齿轮齿条铝合金气动执行机构
执行器输出扭矩
双作用执行器（DA） 106 to115,272 in-lb (12 to 13,024 Nm)
单作用执行器（SR） 97 to 58,273 in-lb (11 to 6,584 Nm)
材质
铝合金

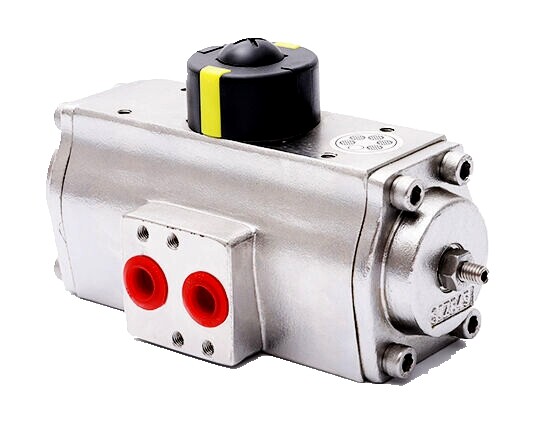

不锈钢
防护等级
IP67 IP68
驱动方式
气动，气动+手动
温度范围
-13°F to 176°F (-25°C to 80°C)
-40°F to 176°F (-40°C to 80°C)
-13°F to 300°F (-25°C to 150°C)
控制附件选项
手轮机构
电磁阀 减压阀
限位开关
Maximum Allowable Operating Pressure
Up to 120 psig (8 Bar)
控制选项
开-关, 调节, 双作用, 单作用
安装
VDI/VDE 3845 Compliant (NAMUR) or ISO 5211 DIN337
气源介质
Dry Compressed Air, Inert Gas
气源尺寸
1/4”NPT or 1/2”NPT or 3/8”NPT or 1/4”G or 1/2”G or 3/8”G
行程角度
0-90°, 45°，135°，140°，180°, 360° , 三位（段）式
阀门应用
气动蝶阀, 气动球阀
Features & Benefits

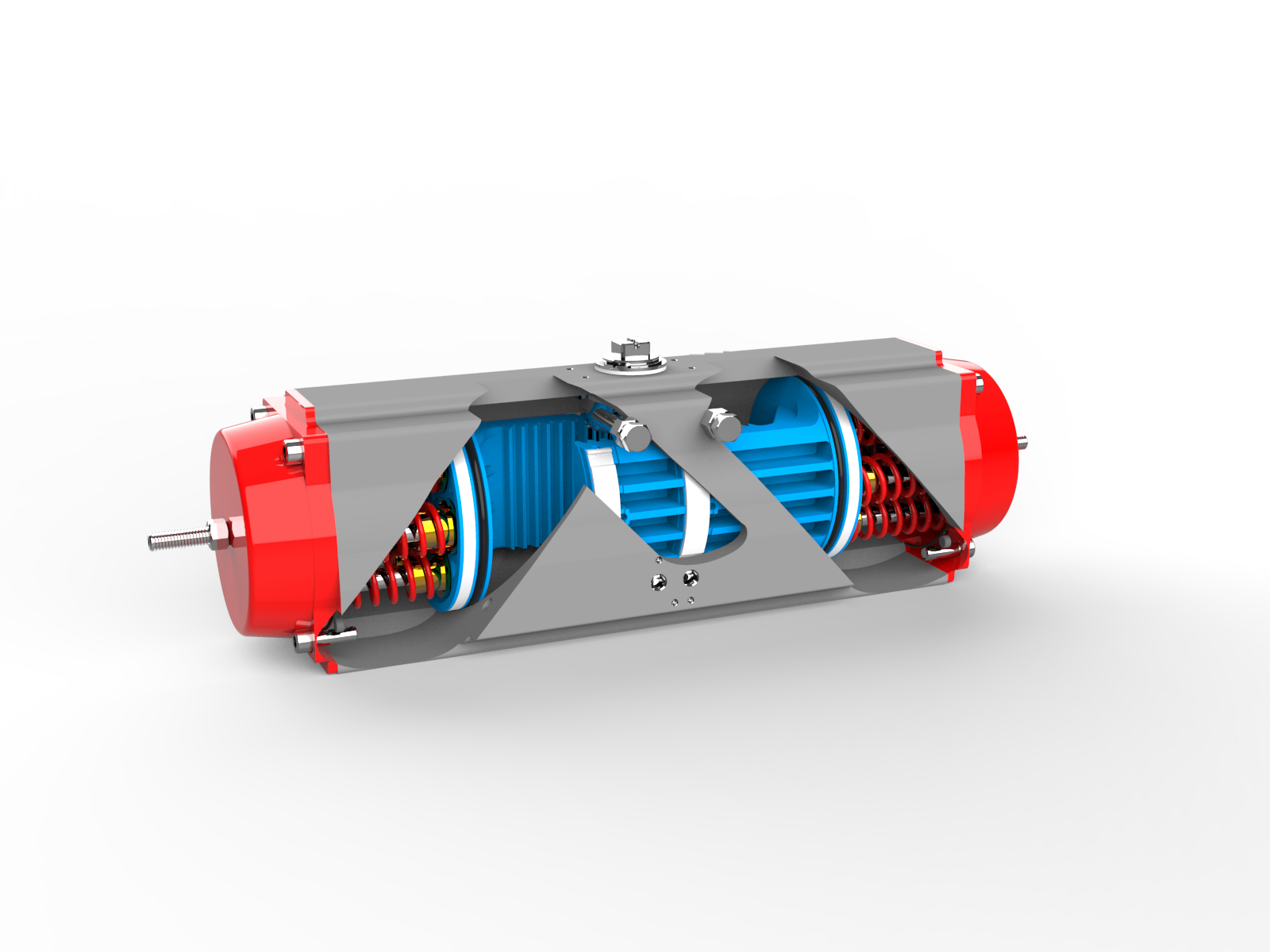

Actuator Body
According to the different requirements, the extruded aluminum alloy ASTM6005 Body can be treated with hard anodized, powder polyester painted (different colours is available such as blue, orange, yellow etc.), PTFE or Nickel plated.
End caps
Die-casting aluminum powder polyester painted in different colours, PTFE or Nickel plated.
Pistons
The twin rack pistons are made from Die-casting aluminum treated with Hard anodized or made from Cast steel with galvanization. Symmetric mounting position, long cycle life and fast operation, reversing rotation by simply inverting the pistons.
Travel adjustment
The two independent external travel stop adjuatment bolts can adjust +5° at both open and close directions easily and precisely.
High performance springs
Preloaded coating springs are made from the high quality material for resistant to corrosion and longer service life, which can be demounted safely and conveniently to satisfy different requirements of torque by changing quantity of springs.
Model Namber
美国西美尔RT系列双作用气动执行器
RT007DA
RT012DA
RT020DA
RT035DA
RT050DA
RT075DA
RT110DA
RT160DA
RT255DA
RT435DA
RT665DA
RT1000DA
RT1200DA
RT1800DA
RT2700DA
RT3800DA
RT5700DA
RT8000DA
高温型双作用气动执行器
RT007DA HT
RT012DA HT
RT020DA HT
RT035DA HT
RT050DA HT
RT075DA HT
RT110DA HT
RT160DA HT
RT255DA HT
RT435DA HT
RT665DA HT
RT1000DA HT
RT1200DA HT
RT1800DA HT
RT2700DA HT
RT3800DA HT
RT5700DA HT
RT8000DA HT
双作用低温气动执行器
RT007DA LT
RT012DA LT
RT020DA LT
RT035DA LT
RT050DA LT
RT075DA LT
RT110DA LT
RT160DA LT
RT255DA LT
RT435DA LT
RT665DA LT
RT1000DA LT
RT1200DA LT
RT1800DA LT
RT2700DA LT
RT3800DA LT
RT5700DA LT
RT8000DA LT
美国西美尔RT系列单作用气动执行器
FC系列气动执行器
RT012SR
RT020SR K10 FC
RT035SR K10 FC
RT050SR K10 FC
RT075SR K10 FC
RT110SR K10 FC
RT160SR K10 FC
RT255SR K10 FC
RT435SR K10 FC
RT665SR K10 FC
RT1000SR K10 FC
RT1200SR K10 FC
RT1800SR K10 FC
RT2700SR K10 FC
RT3800SR K10 FC
RT5700SR K10 FC
RT8000SR K10 FC
FO系列气动执行器
RT012SR FO
RT020SR K10 FO
RT035SR K10 FO
RT050SR K10 FO
RT075SR K10 FO
RT110SR K10 FO
RT160SR K10 FO
RT255SR K10 FO
RT435SR K10 FO
RT665SR K10 FO
RT1000SR K10 FO
RT1200SR K10 FO
RT1800SR K10 FO
RT2700SR K10 FO
RT3800SR K10 FO
RT5700SR K10 FO
RT8000SR K10 FO
高温型单作用执行器
RT012SR HT
RT020SR K10 FC HT
RT035SR K10 FC HT
RT050SR K10 FC HT
RT075SR K10 FC HT
RT110SR K10 FC HT
RT160SR K10 FC HT
RT255SR K10 FC HT
RT435SR K10 FC HT
RT665SR K10 FC HT
RT1000SR K10 FC HT
RT1200SR K10 FC HT
RT1800SR K10 FC HT
RT2700SR K10 FC HT
RT3800SR K10 FC HT
RT5700SR K10 FC HT
RT8000SR K10 FC HT
单作用低温气动执行器
RT012SR LT
RT020SR K10 FC LT
RT035SR K10 FC LT
RT050SR K10 FC LT
RT075SR K10 FC LT
RT110SR K10 FC LT
RT160SR K10 FC LT
RT255SR K10 FC LT
RT435SR K10 FC LT
RT665SR K10 FC LT
RT1000SR K10 FC LT
RT1200SR K10 FC LT
RT1800SR K10 FC LT
RT2700SR K10 FC LT
RT3800SR K10 FC LT
RT5700SR K10 FC LT
RT8000SR K10 FC LT
Downloads
Actuator Related products
SIMMEL can provide you with customized actuator solutions.
