高性能铝合金气动执行器
‹
›
ART系列铝合金气动执行器-高扭矩耐腐蚀
ART系列气动执行器
材质：美标铝合金；
工艺：硬质氧化处理，选项喷塑，海洋防腐漆；
扭矩：3 - 8000牛米
气压：2 - 8巴
行程：90度、135度、140度、180度、360度，定制
安装：国际标准、西美尔标准、定制
适用：球阀，蝶阀，旋塞阀
Specifications

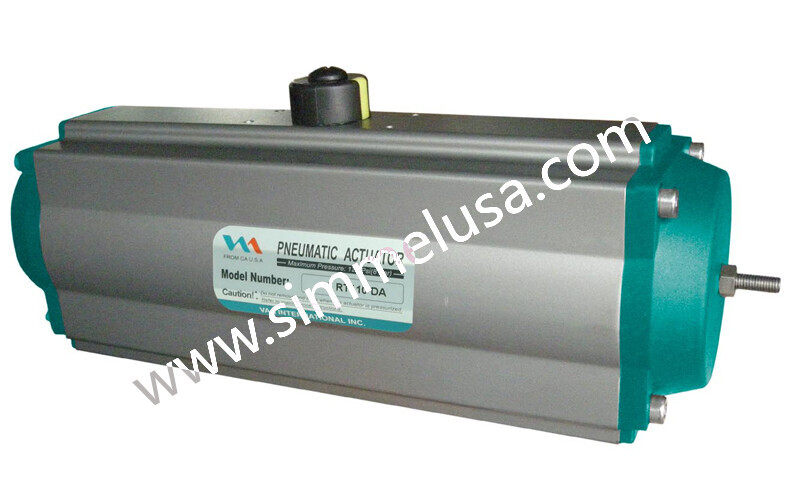

Simmel高性能铝合金气动执行机构
执行器输出扭矩
双作用执行器（DA） 106 to115,272 in-lb (12 to 13,024 Nm)
单作用执行器（SR） 97 to 58,273 in-lb (11 to 6,584 Nm)
材质
铝合金
不锈钢
防护等级
IP67 IP68
驱动方式
气动，气动+手动
温度范围
-13°F to 176°F (-25°C to 80°C)
-40°F to 176°F (-40°C to 80°C)
-13°F to 300°F (-25°C to 150°C)
控制附件选项
手轮机构
电磁阀 减压阀
限位开关
Maximum Allowable Operating Pressure
Up to 120 psig (8 Bar)
控制选项
开-关, 调节, 双作用, 单作用
安装
VDI/VDE 3845 Compliant (NAMUR) or ISO 5211 DIN337
气源介质
Dry Compressed Air, Inert Gas
气源尺寸
1/4”NPT or 1/2”NPT or 3/8”NPT or 1/4”G or 1/2”G or 3/8”G
行程角度
0-90°, 45°，135°，140°，180°, 360° , 三位（段）式
阀门应用
气动蝶阀, 气动球阀
Features & Benefits
高性能铝合金气动执行器

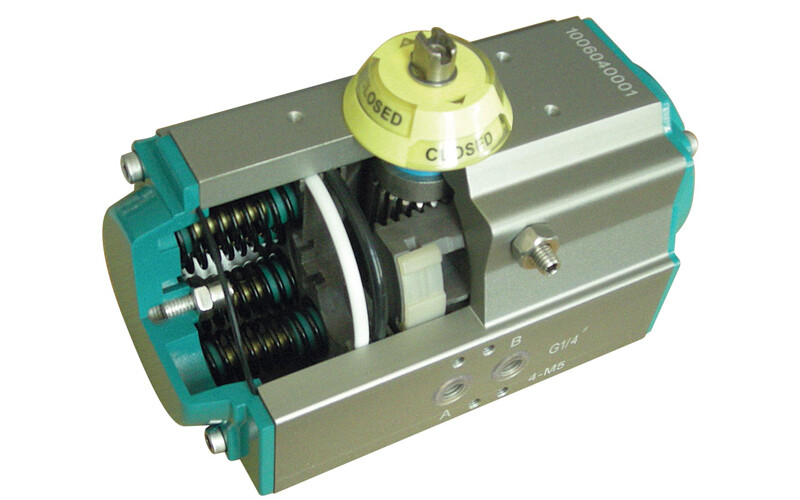

Actuator Body
According to the different requirements, the extruded aluminum alloy ASTM6005 Body can be treated with hard anodized, powder polyester painted (different colours is available such as blue, orange, yellow etc.), PTFE or Nickel plated.
End caps
Die-casting aluminum powder polyester painted in different colours, PTFE or Nickel plated.
Pistons
The twin rack pistons are made from Die-casting aluminum treated with Hard anodized or made from Cast steel with galvanization. Symmetric mounting position, long cycle life and fast operation, reversing rotation by simply inverting the pistons.
Travel adjustment
The two independent external travel stop adjuatment bolts can adjust +5° at both open and close directions easily and precisely.
High performance springs
Preloaded coating springs are made from the high quality material for resistant to corrosion and longer service life, which can be demounted safely and conveniently to satisfy different requirements of torque by changing quantity of springs.
Model Namber
美国西美尔ART系列双作用气动执行器
ART007DA
ART012DA
ART020DA
ART035DA
ART050DA
ART075DA
ART110DA
ART160DA
ART255DA
ART435DA
ART665DA
ART1000DA
ART1200DA
ART1800DA
ART2700DA
ART3800DA
ART5700DA
ART8000DA
高温型双作用气动执行器
ART007DA HT
ART012DA HT
ART020DA HT
ART035DA HT
ART050DA HT
ART075DA HT
ART110DA HT
ART160DA HT
ART255DA HT
ART435DA HT
ART665DA HT
ART1000DA HT
ART1200DA HT
ART1800DA HT
ART2700DA HT
ART3800DA HT
ART5700DA HT
ART8000DA HT
双作用低温气动执行器
ART007DA LT
ART012DA LT
ART020DA LT
ART035DA LT
ART050DA LT
ART075DA LT
ART110DA LT
ART160DA LT
ART255DA LT
ART435DA LT
ART665DA LT
ART1000DA LT
ART1200DA LT
ART1800DA LT
ART2700DA LT
ART3800DA LT
ART5700DA LT
ART8000DA LT
美国西美尔ART系列单作用气动执行器
FC系列气动执行器
ART012SR
ART020SR K10 FC
ART035SR K10 FC
ART050SR K10 FC
ART075SR K10 FC
ART110SR K10 FC
ART160SR K10 FC
ART255SR K10 FC
ART435SR K10 FC
ART665SR K10 FC
ART1000SR K10 FC
ART1200SR K10 FC
ART1800SR K10 FC
ART2700SR K10 FC
ART3800SR K10 FC
ART5700SR K10 FC
ART8000SR K10 FC
FO系列气动执行器
ART012SR FO
ART020SR K10 FO
ART035SR K10 FO
ART050SR K10 FO
ART075SR K10 FO
ART110SR K10 FO
ART160SR K10 FO
ART255SR K10 FO
ART435SR K10 FO
ART665SR K10 FO
ART1000SR K10 FO
ART1200SR K10 FO
ART1800SR K10 FO
ART2700SR K10 FO
ART3800SR K10 FO
ART5700SR K10 FO
ART8000SR K10 FO
高温型单作用执行器
ART012SR HT
ART020SR K10 FC HT
ART035SR K10 FC HT
ART050SR K10 FC HT
ART075SR K10 FC HT
ART110SR K10 FC HT
ART160SR K10 FC HT
ART255SR K10 FC HT
ART435SR K10 FC HT
ART665SR K10 FC HT
ART1000SR K10 FC HT
ART1200SR K10 FC HT
ART1800SR K10 FC HT
ART2700SR K10 FC HT
ART3800SR K10 FC HT
ART5700SR K10 FC HT
ART8000SR K10 FC HT
单作用低温气动执行器
ART012SR LT
ART020SR K10 FC LT
ART035SR K10 FC LT
ART050SR K10 FC LT
ART075SR K10 FC LT
ART110SR K10 FC LT
ART160SR K10 FC LT
ART255SR K10 FC LT
ART435SR K10 FC LT
ART665SR K10 FC LT
ART1000SR K10 FC LT
ART1200SR K10 FC LT
ART1800SR K10 FC LT
ART2700SR K10 FC LT
ART3800SR K10 FC LT
ART5700SR K10 FC LT
ART8000SR K10 FC LT
Downloads
Actuator Related products
SIMMEL can provide you with customized actuator solutions.
