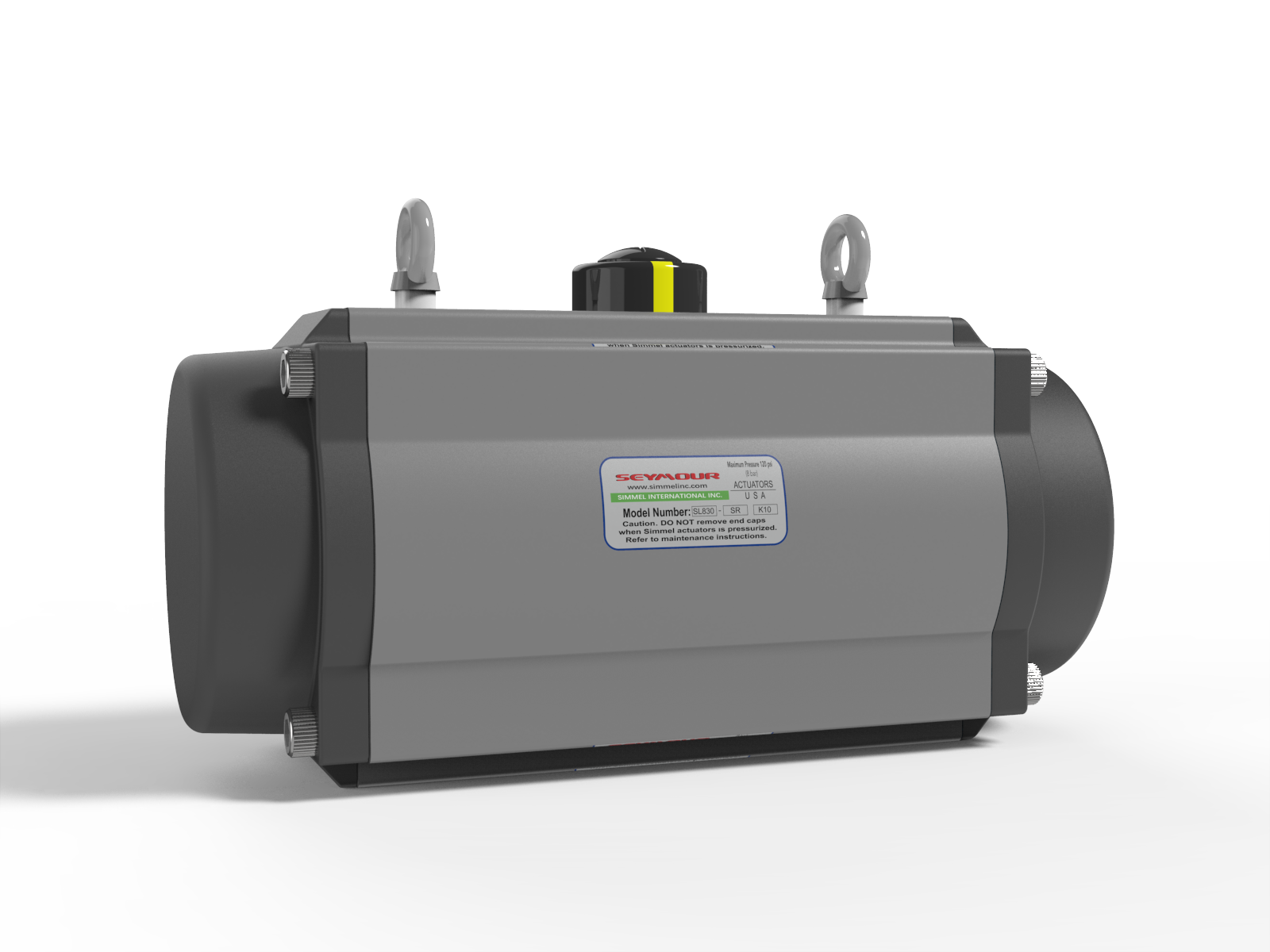

铝合金齿轮齿条活塞式气动执行器
‹
›
美标铝合金齿轮齿条活塞式气动执行器
铝合金气动执行器
美标铝合金材质
齿轮齿条式设计
一体式输出轴
缸径：32 40 52 63 75 83 92 105 125 140 160 190 210 240 270 300 350 400
硬质氧化工艺
温度选项：高温 低温
行程选项：135度 180度 三段 定制
安装：国际标准 西美尔标准 定制
Specifications
西美尔气动执行器
执行器输出扭矩
双作用执行器（DA） 106 to115,272 in-lb (12 to 13,024 Nm)
单作用执行器（SR） 97 to 58,273 in-lb (11 to 6,584 Nm)
材质
铝合金
不锈钢
防护等级
IP67 IP68
驱动方式
气动，气动+手动
温度范围
-13°F to 176°F (-25°C to 80°C)
-40°F to 176°F (-40°C to 80°C)
-13°F to 300°F (-25°C to 150°C)
控制附件选项
手轮机构
电磁阀 减压阀
限位开关
Maximum Allowable Operating Pressure
Up to 120 psig (8 Bar)
控制选项
开-关, 调节, 双作用, 单作用
安装
VDI/VDE 3845 Compliant (NAMUR) or ISO 5211 DIN337
气源介质
Dry Compressed Air, Inert Gas
气源尺寸
1/4”NPT or 1/2”NPT or 3/8”NPT or 1/4”G or 1/2”G or 3/8”G
行程角度
0-90°, 45°，135°，140°，180°, 360° , 三位（段）式
阀门应用
气动蝶阀, 气动球阀
Features & Benefits
气动执行机构
Actuator Body
According to the different requirements, the extruded aluminum alloy ASTM6005 Body can be treated with hard anodized, powder polyester painted (different colours is available such as blue, orange, yellow etc.), PTFE or Nickel plated.
End caps
Die-casting aluminum powder polyester painted in different colours, PTFE or Nickel plated.
Pistons
The twin rack pistons are made from Die-casting aluminum treated with Hard anodized or made from Cast steel with galvanization. Symmetric mounting position, long cycle life and fast operation, reversing rotation by simply inverting the pistons.
Travel adjustment
The two independent external travel stop adjuatment bolts can adjust +5° at both open and close directions easily and precisely.
High performance springs
Preloaded coating springs are made from the high quality material for resistant to corrosion and longer service life, which can be demounted safely and conveniently to satisfy different requirements of torque by changing quantity of springs.
Model Namber
AT系列双作用执行器
AT32DA
AT52DA
AT63DA
AT75DA
AT83DA
AT92DA
AT105DA
AT125DA
AT140DA
AT160DA
AT190DA
AT210DA
AT240DA
AT270DA
AT300DA
AT350DA
AT400DA
AT系列三位式气动执行器
AT32DA-3P
AT52DA-3P
AT63DA-3P
AT75DA-3P
AT83DA-3P
AT92DA-3P
AT105DA-3P
AT125DA-3P
AT140DA-3P
AT160DA-3P
AT190DA-3P
AT210DA-3P
AT240DA-3P
AT270DA-3P
AT300DA-3P
AT350DA-3P
AT400DA-3P
美国西美尔AT系列135°、140°、180°、360°气动执行器
AT32DA-135
AT52DA-135
AT63DA-135
AT75DA-135
AT83DA-135
AT92DA-135
AT105DA-135
AT125DA-135
AT140DA-135
AT160DA-135
AT190DA-135
AT210DA-135
AT240DA-135
AT270DA-135
AT300DA-135
AT350DA-135
AT400DA-135
AT32DA-180
AT52DA-180
AT63DA-180
AT75DA-180
AT83DA-180
AT92DA-180
AT105DA-180
AT125DA-180
AT140DA-180
AT160DA-180
AT190DA-180
AT210DA-180
AT240DA-180
AT270DA-180
AT300DA-180
AT350DA-180
AT400DA-180
AT系列三段式气动执行器
AT32DA-3P
AT52DA-3P
AT63DA-3P
AT75DA-3P
AT83DA-3P
AT92DA-3P
AT105DA-3P
AT125DA-3P
AT140DA-3P
AT160DA-3P
AT190DA-3P
AT210DA-3P
AT240DA-3P
AT270DA-3P
AT300DA-3P
AT350DA-3P
AT400DA-3P
AT系列单作用执行器
AT-52SR K10 FC
AT-63SR K10 FC
AT-75SR K10 FC
AT-83SR K10 FC
AT-92SR K10 FC
AT-105SR K10 FC
AT-125SR K10 FC
AT-140SR K10 FC
AT-160SR K10 FC
AT-190SR K10 FC
AT-210SR K10 FC
AT-240SR K10 FC
AT-270SR K10 FC
AT-300SR K10 FC
AT-350SR K10 FC
AT-400SR K10 FC
AT-52SR K10 FO
AT-63SR K10 FO
AT-75SR K10 FO
AT-83SR K10 FO
AT-92SR K10 FO
AT-105SR K10 FO
AT-125SR K10 FO
AT-140SR K10 FO
AT-160SR K10 FO
AT-190SR K10 FO
AT-210SR K10 FO
AT-240SR K10 FO
AT-270SR K10 FO
AT-300SR K10 FO
AT-350SR K10 FO
AT-400SR K10 FO
AT系列单作用三位式执行器
AT-52SR K10 FC-3P
AT-63SR K10 FC-3P
AT-75SR K10 FC-3P
AT-83SR K10 FC-3P
AT-92SR K10 FC-3P
AT-105SR K10 FC-3P
AT-125SR K10 FC-3P
AT-140SR K10 FC-3P
AT-160SR K10 FC-3P
AT-190SR K10 FC-3P
AT-210SR K10 FC-3P
AT-240SR K10 FC-3P
AT-270SR K10 FC-3P
AT-300SR K10 FC-3P
AT-350SR K10 FC-3P
AT-400SR K10 FC-3P
AT-52SR K10 FO-3P
AT-63SR K10 FO-3P
AT-75SR K10 FO-3P
AT-83SR K10 FO-3P
AT-92SR K10 FO-3P
AT-105SR K10 FO-3P
AT-125SR K10 FO-3P
AT-140SR K10 FO-3P
AT-160SR K10 FO-3P
AT-190SR K10 FO-3P
AT-210SR K10 FO-3P
AT-240SR K10 FO-3P
AT-270SR K10 FO-3P
AT-300SR K10 FO-3P
AT-350SR K10 FO-3P
AT-400SR K10 FO-3P
Downloads
Actuator Related products
SIMMEL can provide you with customized actuator solutions.
