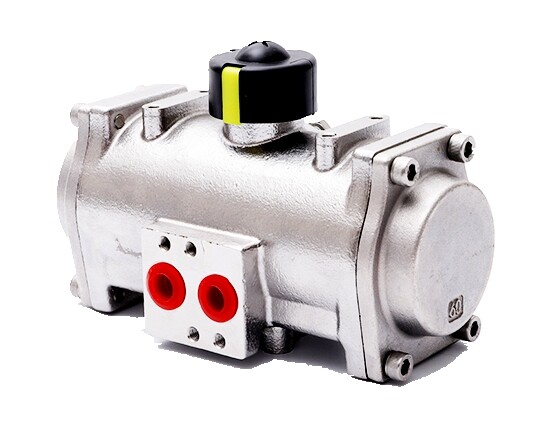

双限位不锈钢气动执行机构
不锈钢齿轮齿条气动执行机构
扭矩：3 ~ 8000Nm
动作：DA SR
气压：2 ~ 10Bar
材质：美标304 316
适用：球阀 蝶阀 旋塞 风门
‹
›
双限位不锈钢气动执行机构
-
0° ~ 90° ± 45°
-
90° ± 5°
-
齿轮齿条活塞式
-
2 ~ 10Bar
-
2.5 ~ 8Bar
-
美标不锈钢316
-
美标不锈钢304
Specifications
不锈钢气动阀门执行机构
Output Torque
Double Acting 106 to115,272 in-lb (12 to 13,024 Nm)
Spring Return 97 to 58,273 in-lb (11 to 6,584 Nm)
Temperature Range
-13°F to 176°F (-25°C to 80°C)
-40°F to 176°F (-40°C to 80°C)
-13°F to 248°F (-25°C to 120°C)
Enclosure Ratings
IP67 IP68
Materials
Aluminium alloy or Stainless Steel
Temperature Range
-40°F to 300°F (-40°C to 150°C)
Power Source
Pneumatic
Maximum Allowable Operating Pressure
Up to 120 psig (8 Bar)
Control Options
On-Off, Throttling, Double Acting, Spring Return
Mounting
VDI/VDE 3845 Compliant (NAMUR) or ISO 5211 DIN337
Supply Media
Dry Compressed Air, Inert Gas
Conduit Ports
1/4”NPT or 1/2”NPT or 3/8”NPT or 1/4”G or 1/2”G or 3/8”G
Travel angle
0-90°, 45°，135°，140°，180°, 360° , 3P
Certifications
ABS, ATEX, Bureau Veritas, PED, SIL 3
Valve Compatibility
Butterfly Valves, Ball Valves
Features & Benefits
化工与石化行业
海洋与近海工业
水与废水处理
食品、饮料与乳制品工业
制药与生物技术
能源与电力
纸浆与造纸工业
采矿与冶金
低温/深冷应用
Downloads
Actuator Related products
SIMMEL can provide you with customized actuator solutions.
